Installing and adjusting door hinges might seem daunting, but with the right tools and guidance, it’s a task that anyone can accomplish. Whether you're installing spring hinges on a screen door, adjusting existing hinges, or installing new door hinges, this guide will walk you through the essential steps. We will also explore the different types of hinges, including black door hinges and hinges for doors, to help you make the best choice for your needs.

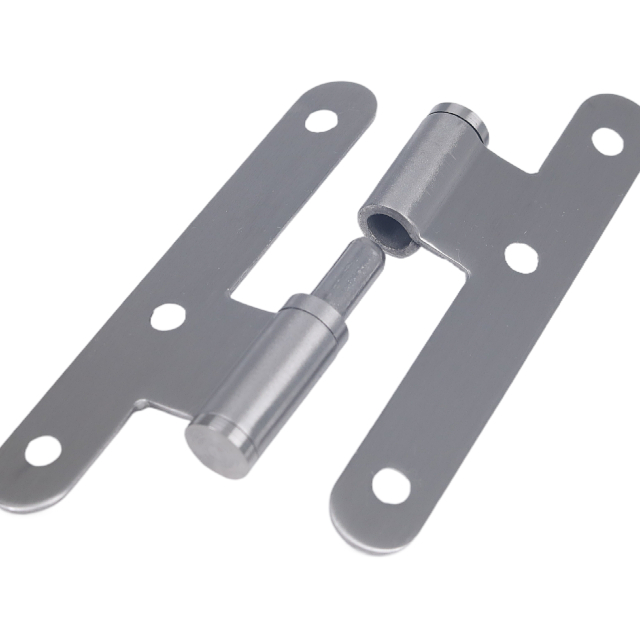

door hinge

How to Put Spring Hinges on a Screen Door

Spring hinges are a popular choice for screen doors because they automatically close the door, ensuring it doesn’t remain open. Here's how to install them:


Materials Needed:

Spring hinges

Screws (usually included with the hinges)

Screwdriver or drill

Pencil

Measuring tape

Level


Step-by-Step Instructions:

Choose the Right Hinges: Select the appropriate spring hinges based on the weight and size of your screen door. Black door hinges can provide a sleek, modern look, especially if they match your door's color scheme.

Mark the Hinge Placement: Measure and mark the placement of the hinges on the door frame and the door itself. Typically, you will install two hinges, one at the top and one at the bottom. Ensure that the distance from the top of the door to the top hinge and the bottom of the door to the bottom hinge is equal.

Pre-drill Holes: Use a drill to make pilot holes where you marked the placements. This helps prevent the wood from splitting when you install the screws.

Attach the Hinges: Line up the hinge with the pre-drilled holes and use a screwdriver or drill to attach the screws. Start with the door frame and then attach the hinge to the door. Make sure the hinges are aligned properly to ensure smooth operation.

Adjust the Spring Tension: Most spring hinges have an adjustment mechanism. Use a tension pin to adjust the spring tension to your desired strength. Insert the tension rod into the adjustment hole and turn it to increase or decrease the tension. Once the desired tension is reached, insert the pin to lock it in place.

Test the Door: Open and close the door several times to ensure it closes properly and the tension is correct. Adjust as needed.

black door hinges

How to Adjust Door Hinges

Over time, doors may sag or become misaligned due to regular use. Adjusting door hinges can fix alignment issues and ensure smooth operation.



Materials Needed:

Screwdriver

Shims (if needed)

Level

Wrench (for hinge screws)


Step-by-Step Instructions:

Identify the Issue: Check if the door is sagging or dragging. This will help you determine which hinge needs adjustment.

Tighten Loose Screws: Use a screwdriver to tighten any loose screws on the door hinges. Loose screws are often the primary cause of misalignment.

Adjust the Hinge Position: If tightening the screws doesn't fix the problem, you may need to adjust the hinge position. Loosen the screws on the hinge slightly, then adjust the door up, down, or sideways as needed. Tighten the screws once the door is properly aligned.

Add Shims if Necessary: If the door still sags, you may need to add shims behind the hinges. Shims can be made of wood or cardboard and help realign the door. Place the shim between the hinge and the door or frame, then tighten the screws.

Check the Alignment: Use a level to ensure the door is straight and properly aligned. Make further adjustments if necessary.

Lubricate the Hinges: If the door still makes noise or doesn’t swing smoothly, apply a lubricant to the hinges. This can help reduce friction and prolong the hinge’s life.



How to Install Door Hinges

Installing new door hinges requires careful measurement and precision. Whether you're replacing old hinges or installing new ones, follow these steps for a successful installation.



Materials Needed:

Door hinges (such as black door hinges)

Screws

Screwdriver or drill

Chisel

Hammer

Measuring tape

Pencil

Level


Step-by-Step Instructions:

Choose the Right Hinges: Select hinges that match the style and weight of your door. For a sleek look, consider using black door hinges.

Mark the Hinge Placement: Measure and mark the hinge locations on the door and the door frame. Typically, there are three hinges for a standard door: one near the top, one in the middle, and one near the bottom.

Cut the Hinge Mortises: Use a chisel and hammer to cut mortises for the hinges. The mortise should be the same depth as the hinge leaf thickness. This allows the hinge to sit flush with the door and frame.

Pre-drill Screw Holes: Pre-drill holes for the screws to prevent the wood from splitting. This is especially important for hardwood doors.

Attach the Hinges to the Door: Position the hinge in the mortise and use screws to attach it to the door. Ensure the hinge is flush with the door surface.

Attach the Hinges to the Frame: Align the door with the door frame and attach the hinges to the frame. It’s helpful to have someone hold the door in place while you secure the hinges.

Check the Door Alignment: Use a level to ensure the door is properly aligned and swings freely. Make any necessary adjustments.

Finish and Test: Once the hinges are installed, test the door to ensure it opens and closes smoothly. Make any final adjustments as needed.



hinges for doors


Choosing the Right Hinges

When selecting door hinges, consider factors such as material, finish, and design. Black door hinges are popular for their modern and sleek appearance, making them a versatile choice for various door styles. Additionally, the size and type of hinge should match the door's weight and use.



Types of Door Hinges:

Butt Hinges: Common for interior and exterior doors, butt hinges consist of two plates joined by a pin. They are suitable for heavy doors.

Spring Hinges: Ideal for doors that need to close automatically, such as screen doors.

Continuous Hinges: Also known as piano hinges, these run the entire length of the door and are great for heavy or oversized doors.

Concealed Hinges: Often used for cabinets, these hinges are hidden when the door is closed.

Ball-Bearing Hinges: Designed for heavy doors, these hinges have ball bearings in the knuckle to reduce friction and wear.



Conclusion

Installing and adjusting door hinges is a straightforward task that can significantly improve the functionality and appearance of your doors. By following the steps outlined above, you can ensure that your doors operate smoothly and align properly. Whether you're installing spring hinges on a screen door, adjusting existing hinges, or installing new black door hinges, proper installation and maintenance are key to longevity and performance.



For high-quality door hinges, including black door hinges and other hardware, consider amxingda hardware. Their range of durable and stylish hinges can meet all your door hardware needs. For more information, contact them at info@amxingdahardware.com
